ACCESSORIES & PARTS 1-2-2020

SUBARU EJ-22 ENGINE

Subaru EJ-22 Engine $3,750.

Subaru EJ-22 Engine $3,750.  Rated 130HP @ 5,200 RPM.  Reduction drive, Computer module, wiring harness, alternator, oil pressure, water temp, voltmeter, hour meter, tachometer, wiring harness.  Weight 180 LBS.

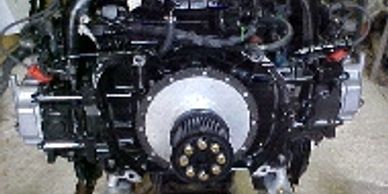

SUBARU REDUCTION DRIVE UNIT


SUBARU  reduction drive unit $1,775.  With starter, ring gear, prop hub, mounting gear for your engine.  Weight 50 LBS average based on prop hub needed per engine.

ROTOR BLADES


ROTOR BLADES.  Prices vary with market conditions.  Call for current prices, sizes in stock, and availability.  Prices may change without notice due to supply availability,cost, and shipping.

SUBARU EJ-25 ENGINE


Subaru EJ-25 Engine $4,150.   Rated 165 HP @ 5,200 RPM.  Similar to EJ-22 and same components included.  Weight 195 LBS.

ROTOR HEADS


Single place $1,250.  Shown with optional pre-rotator ring gear & rotor brake.

TWO PLACE ROTOR HEAD


Two place rotor head $1,975.  Dual bearings.  Shown with optional pre-rotator ring gear & rotor brake.

NOSE POD FAIRINGS


Fiberglass nose fairing $450.  Shipped with mounting hardware, instructions.

WHEEL PANTS


Wheel pants $175. each.  For nose wheel or main wheels. Mounting hardware.

WIND SHIELD


Wind shield stars at $95. Custom sizes are cut to size and shape to fit the nose pod.  Hardware & instructions included.

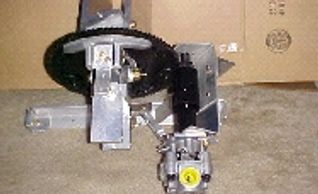

HYDRAULIC PRE-ROTATOR


Hydraulic pre-rotator $1,750.  Unit contains engine mounted pump, electric clutch activated, rotor blade motor, ring gear, rotor brake, hoses, fittings.

THROTTLE CABLE


Throttle with cable $95.  For single place gyro. Control unit, 60" cable, mounting bolts, and instructions.

CONTROL STICK


Single place control stick $300.  Combination of steel and aluminum for strength and light weight.

TWO PLACE CONTROL STICK


Two place control stick $350.  Made for dual instruction with the same construction of steel and aluminum.

TALL TAIL


Tall tail $650.  All aluminum, all flying tail. Shipped with mounting hardware , instructions and fins must be attached.

TRIM CONTROL


Trim control $95.  Mounted on the mast above the pilot's head. Large knob for easy screw adjustment while in flight.  Large spring for constant tension. Instructions and mounting hardware.

ALUMINUM SEAT TANK


Aluminum seat tank $550.  Mounting brackets, fuel hoses,  supply and return ports, sight gauge tube. 16 gallon capacity.  Larger sizes available. Weight 32 pounds, varies by size, 1/8" aluminum, 21"L X 20"W X 28"H.

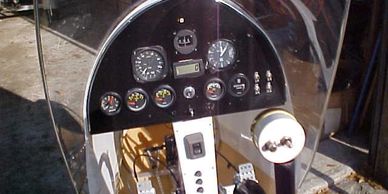

INSTRUMENT PANEL


Instrument panel $125.  Includes upright supports, silver edge strip, mounting bolts. Lay out may vary for custom instrument placement.  Instruments are shown for clarity and not included.

PROP HUBS


Prop hub price will depend on engine, prop used, drive configuration, and size desired. Call for information and custom quote.

WARP DRIVE PROPS


WARP DRIVE PROPS.  Call for price based on size, number of blades, hub needed, and delivery time.

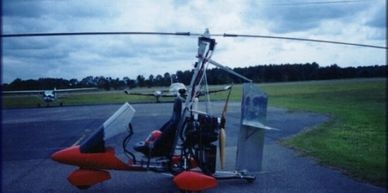

ORIGINAL MIDNIGHT HAWK


This is where the name midnight came from: it is black and I spent a lot of midnights in doing the design,  construction, and testing.

Something new cominng


Looking for new improvements.

Specials in the works


Products under review.

Searching for motor gauges


Checking out the digital glass panels.

Exploring different panel layouts


Proposed panel layouts by customers.
